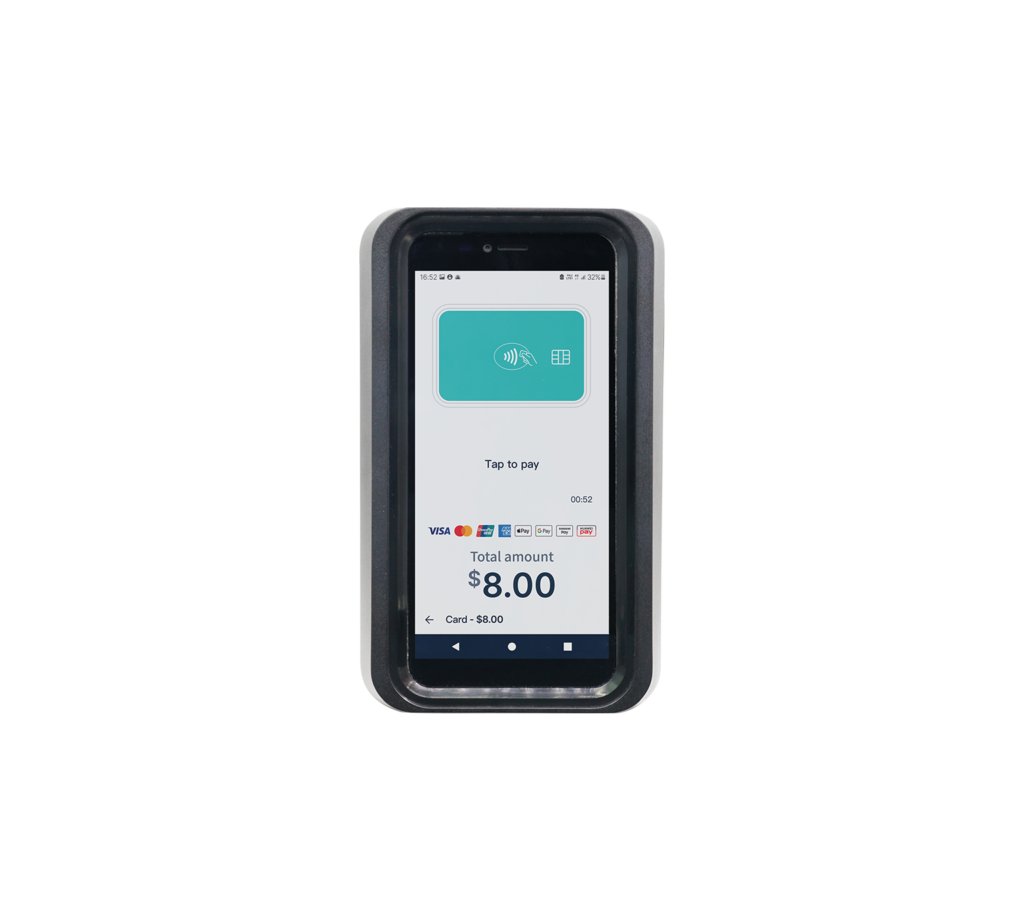

tap-POS Self-Service Payment Terminal
Self-servicepaymentsolutionyou can count on
Complied with EVA and IP65 standards, tap-POS Self-Service Terminal comes with a sleek design that is fully protected against dust, airborne particles and water jets
tap-on-screen
QR code
NFC contactless
Core Features
Quad-core
1GB RAM, 16GB Flash
Android V11 operating system
5.45” FWVGA IPS capacitive multi-point touch
2MP FF rear camera with flash light
4G-LTE/3G/2G, WIFI/Bluetooth®
European Vendor Association (EVA) standards
IP65
Android OS 11 GO
GMS Certified
5.45” FWVGA
IPS capacitive
multi-touch display
Certification
PCI 6.x
EVA
Specifications
| Table Header | Table Header |
|---|---|
|
Processor |
Quad-core A53@ 2.0GHz |
|
Operating system |
Android 11 Go edition |
|
Memory |
1GB RAM, 16GB Flash;
2GB RAM, 32GB Flash (optional) |
|
Display |
5.45” FWVGA IPS capacitive multi-touch |
|
Camera |
300k pixels FF front camera |
|
NFC |
ISO14443 A/B and FeliCa, front-top LCD side |
|
Card slots |
Mini SIM x 1 |
|
Connectivity |
4G-LTE/3G/2G, WIFI/Bluetooth®, Ethernet |
|
Interface |
Serial Port, USB Host x 2, MDB |
|
Power |
9 – 48V 1.5A |
|
Operation temperature |
0˚C – 45˚C |
|
Storage temperature |
-25˚C – 70˚C |
|
Overall dimension |
168(L) X 102(W) X 60(D) mm |
|
Dimension outside vending machine |
168(L) X 102(W) X 31(D) mm |
|
Weight |
430g (included tap-POS) |
|
Installation cutout |
108(L) X 86(W) mm |
*Specifications are subject to change without prior notice.
