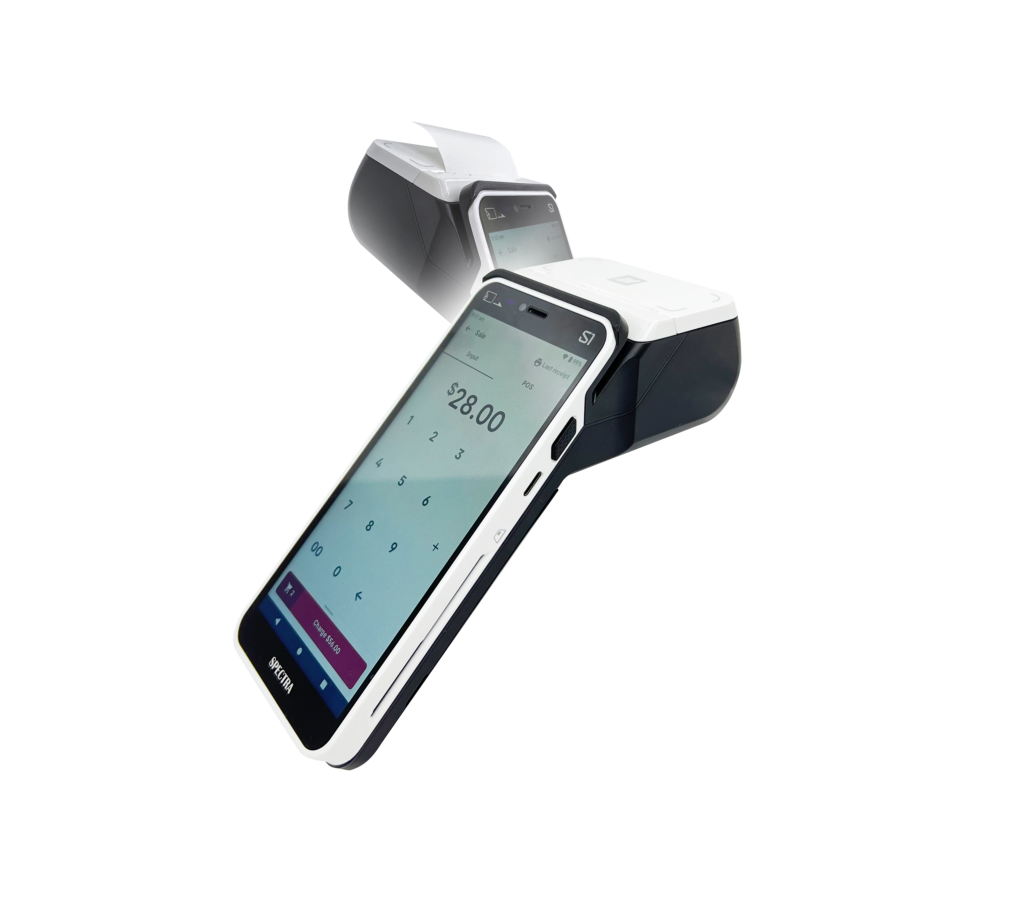

S1 Plus
All-in-one Smart POS
This compact and Android-based Smart POS comes with an easy-loading, fast and lightweight printer that is user-friendly and reliable

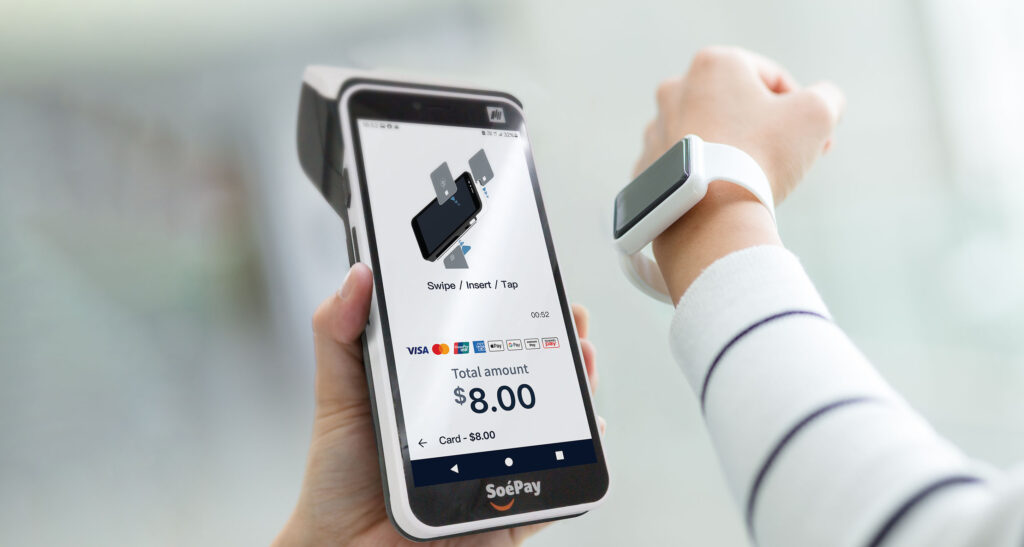

Accepting all EMV-based contact, contactless and QR code payment methods, this flexible device is the optimal choice for various scenarios
Accepting all EMV-based contact, contactless and QR code payment methods, this flexible device is the optimal choice for various scenarios
Core Features
Android OS 12
Quad-core processor + secure processor
High speed thermal printer integrated
5.5” IPS capacitive multi-touch display
ISO14443 A/B and FeliCa, front-top LCD-side NFC
4G-LTE/3G/2G, dual band WiFi, Bluetooth ®
5000mAh for mobile usage and printer
Certification
PCI 6.x
Specifications
| Table Header | Table Header |
|---|---|
|
Table Header
Processor |
Table Header
Quad-core A53@ 2.0GHz+ Secure processor |
|
Table Header
Operating system |
Table Header
Android 12 |
|
Table Header
Memory |
Table Header
2GB RAM+16GB Flash |
|
Table Header
Extend memory |
Table Header
Micro SD card x 1 |
|
Table Header
Display |
Table Header
5.5” 720×1440 IPS capacitive multi-touch |
|
Table Header
Camera |
Table Header
5MP AF rear camera with flash light, 0.3MP FF front camera |
|
Table Header
NFC |
Table Header
ISO14443 A/B and FeliCa, front-top LCD side |
|
Table Header
ICC |
Table Header
Smart Card complies with ISO7816 |
|
Table Header
MagCard |
Table Header
Support 1/2/3 Track bi-direction complies with ISO7810/7811 |
|
Table Header
USB port |
Table Header
USB Type C, support 2.0 OTG |
|
Table Header
Sensor |
Table Header
Proximity sensor near front camera, G-sensor |
|
Table Header
SIM |
Table Header
Nano SIM x 1 + mini SIM x 1 |
|
Table Header
SAM |
Table Header
SAM slot x 1 |
|
Table Header
Connectivity |
Table Header
4G-LTE/3G/2G, dual band WIFI, Bluetooth® |
|
Table Header
Positioning |
Table Header
GPS/GLONASS/BeiDou |
|
Table Header
Frequency bands |
Table Header
GSM: BAND 850/900/1800/1900, WCDMA: BAND1/2/4/5/8, TDD: BAND 38/40/41(120M), FDD: B1/2/3/4/5/7/8/20/28 |
|
Table Header
Frequency bands (Thailand) |
Table Header
GSM: BAND 850/900/1800/1900, WCDMA: BAND1/2/4/5/8, TDD: BAND 38/40, FDD: B1/2/3/4/5/7/8/20/28 |
|
Table Header
Battery |
Table Header
3.8V 2500mAh replaceable battery for desktop usage
3.8V 5000mAh for mobile usage |
|
Table Header
Charger |
Table Header
Compatible with any standard of USB 5V 2A adaptor |
|
Table Header
Operation temperature |
Table Header
0˚C – 50˚C |
|
Table Header
Storage temperature |
Table Header
-25˚C – 70˚C |
|
Table Header
Dimension & weight |
Table Header
188(L) X 72(W) X 69(D) mm, total 360g |
|
Table Header
Accessories (optional) |
Table Header
Charging dock |
*Specifications are subject to change without prior notice.
